Gerard's Sokol 403

139
Item nr.

Sokol 403 Portable

Russian portable.

**Data for Sokol 403**
Production	Soviet Union, 1976. Price was 33 Rubles.
Bands	LW (0.15-0.39 MHz) MW (0.53-1.50 MHz).
Semi- conductors	6 transistors: GT309?, GT309?, 4x P40..
Cabinet	Plastic. Size 15x9x4 cm. Weight 400 gr.
Power	9V, Batt or external.
Documents	Various documents (on site of Hans Hilberink).

The Design

Has a 9V connector on the back shaped like a Western 230V entry, so take care! You can use the connector to feed the radio with 9V supply, but you can also use it to take 9V if a battery is in the set.

The transistors have their type numbers printed in Cyrillic, but very tiny so I could not read all the digits.

Obtained	11/1999 from Junque Shop Prague.
Condition	8.
Disposed	Sold 9/2003.

This Object

The battery lid is missing; otherwise the condition is excellent.

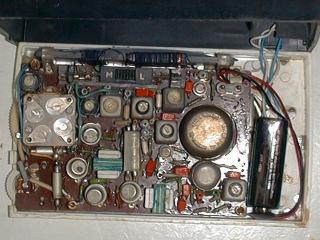

The leather carrying bag has Apr. 1980 printed inside.Inside picture: the four big transistors in the left part are the P40, the two small ones in the right upper part are the GT309*. The 9V connector is in the right upper corner.
