Gerard's Philips B4X61A

71
Item nr.

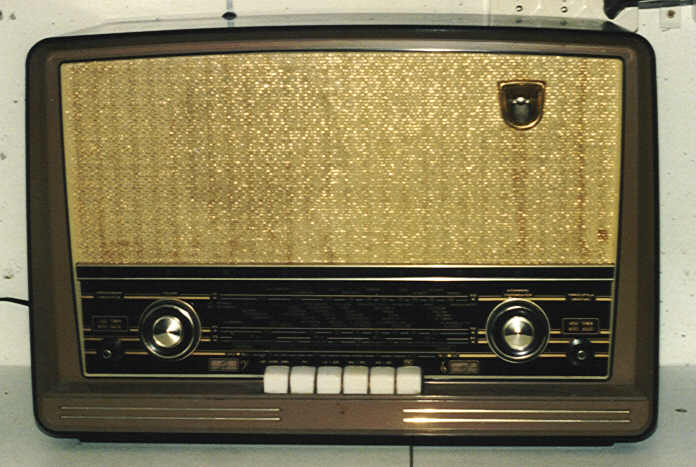

Philips B4X61A Table top

Budget quality set

**Data for Philips B4X61A**
Production	The Netherlands, 1956.
Bands	LW MW SW (23-52m) FM (87.5-100 MHz).
Tubes	ECC85 ECH81 EF89 EF85 EABC80 EL84 EL86 EZ80 EM80.
Cabinet	Bakelite. Size 517x346x223 mm.
Power	AC.
Documents	Schema.

The Design

The cabinet looked a bit cheap at the time (wood was more expensive and appreciated than bakelite), but this set has the superb series-balanced output stage. The EL86 and EL84 together form a balanced output stage, but of the series type. The speakers are connected without an output transformer.

Obtained	8/1997 from Anneke Jansen.
Condition	9.
Disposed	Sold 9/1998.

This Object

The radio was sold to Asia. Some countries there have pretty high limits on the size of postal packets.
