307
Item nr.
| Production | The Netherlands, 1952. |
|---|---|
| Bands | LW, MW, SW. |
| Tubes | DF91, DK92, DF91, DAF91, DL94. |
| Semi- conductors | Selenium Rectifier. |
| Cabinet | Bakelite. |
| Power | AC (110/125/220V at 14W) or Battery (130 and 3V). |
and can be supplied from mains. This makes it also a handy second set in the house. It is built with a sturdy metal chassis, almost like a mains set, but with everything smaller.
| Obtained | Was never mine, repair for Jetse, 1/2008. |
|---|---|
| Condition | 8. |
| Sound sample | PLAY SOUND What language is this? |

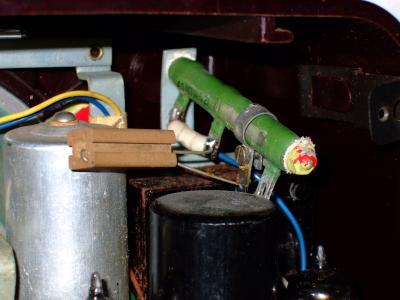

part of the dropping resistor was bridged by a modern resistor, but this appeared to be done quite good so I didn't touch it. The reason why the radio didn't work was an interrupted IF coil, which I bypassed with a resistor and a capacitor. Then I found out that the dial chord was wrongly wound, so I had to pull the chassis and rewind it.
