Harteveld NH Crystal Receiver

Tiny unsensitive receiver

**Data for Harteveld NH**
Production	The Netherlands, 1990.
Bands	MW.
Cabinet	Wood. Size 13x13x7cm.

The Design

Nico Harteveld crafted reproductions of old reveivers as a hobby. The era in which these crystal receivers were actually seriously in use was the nineteen twenties.

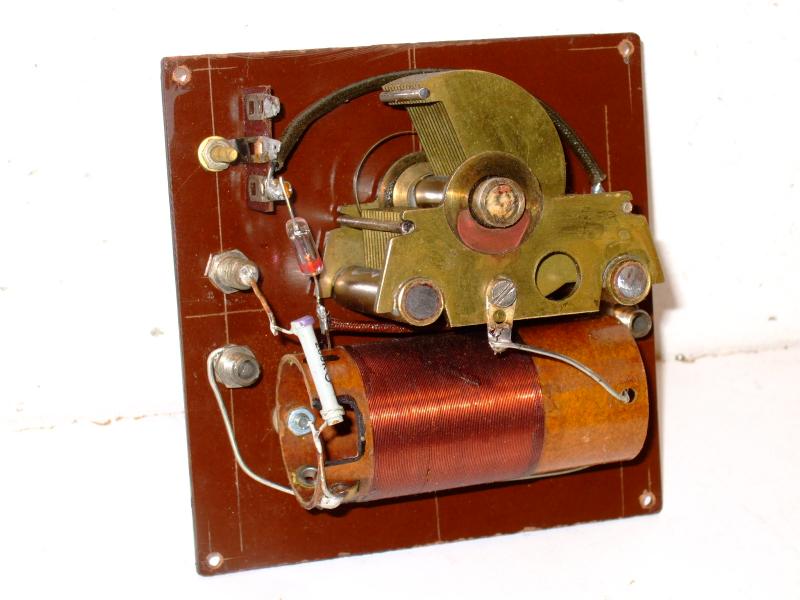

This item contains some genuinely old parts (at least the tuning cap), but I think the coil and box were made later. The headpiece could also be more recent, like from the nineteen fifties. The inside reveals just a coil (with tap) and tuning cap, and a diode and condensator.

Obtained	2/2016 from Klaas.
Condition	8.
Disposed	Sold 5/2019.

This Object

The receiver works. It has a dial marked 30 to 100. At 40 I receive Radio Paradijs and at 55 I receive Groot Nieuws Radio (February 2016).

Part of Gerard's Radio Corner.
